Quick Tip: Measuring a Hydraulic Filter Element

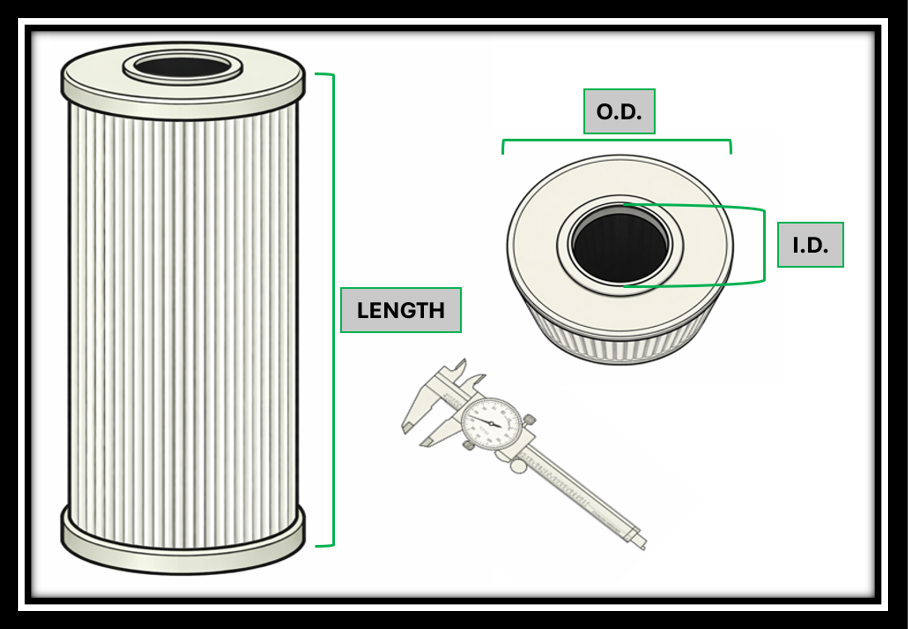

A set of calipers is all that’s required to accurately measure a hydraulic filter element.

• Measure the Outer Diameter (O.D.) across the end cap
• Measure the Inner Diameter (I.D.) at the center hole (core opening)
• Confirm the I.D. is consistent top-to-bottom
• Note the end cap style
• Measure the length from top end cap edge to bottom end cap edge
• Note any model numbers or identifying markings
• Confirm if a center core (perforated tube) is present

You might ask: How do I know what micron level to choose for my application?

• Many filters have a printed or stamped micron rating
• If not, selection depends on system components, fluid type, and required cleanliness level
• Filtration is application-specific—not "one-size-fits-all"
